MiroTalk SFU Integration

Iframe

Easily integrate MiroTalk SFU into your website by embedding it with a simple iframe as Landing Page Mode.

HTML
<!doctype html>
<html lang="en">
    <head>
        <meta charset="utf-8" />
        <meta http-equiv="X-UA-Compatible" content="IE=edge" />
        <meta name="viewport" content="width=device-width, initial-scale=1.0" />
        <title>MiroTalk SFU - Simple Iframe Example</title>
    </head>
    <body>
        <iframe
            id="mirotalkIframe"
            allow="camera; microphone; display-capture; fullscreen; clipboard-read; clipboard-write; web-share; autoplay"
            src="https://YOUR-DOMAIN-NAME/newroom"
            style="height: 100vh; width: 100vw; border: 0px"
        ></iframe>
    </body>
</html>

Important: Replace YOUR-DOMAIN-NAME with your actual MiroTalk SFU server URL.

IframeAPI

Easily embed MiroTalk SFU into your website using an iframeAPI. The IframeApi lets you create and manage video conferencing rooms directly within your web application, offering a seamless integration experience.

Key Features

  • Simple iframe embedding
  • Customizable room and participant settings
  • Full control over audio, video, and screen sharing
  • Password-protected rooms
  • Flexible UI visibility options
  • Room share notifications
  • Unlimited session duration

Quick Start

To integrate MiroTalk SFU via iframe, add the following HTML and JavaScript to your webpage:

HTML
<!doctype html>
<html lang="en">
  <head>
    <meta charset="UTF-8" />
    <meta name="viewport" content="width=device-width, initial-scale=1.0" />
    <title>MiroTalk SFU Iframe Demo</title>
    <script src="https://YOUR-DOMAIN-NAME/js/Iframe.js" defer></script>
    <script>
      document.addEventListener("DOMContentLoaded", function () {
        const domain = "YOUR-DOMAIN-NAME";
        const options = {
          room: "test",
          roomPassword: 0,
          name: 'guest-' + Math.floor(Math.random() * 10000),
          avatar: 0,
          audio: 0,
          video: 0,
          screen: 0,
          chat: 0,
          hide: 0,
          notify: 0,
          duration: "unlimited", // HH:MM:SS
          token: null,
          width: "100vw",
          height: "100vh",
          parentNode: document.querySelector("#meet"),
        };
        const api = new IframeApi(domain, options);
      });
    </script>
  </head>
  <body>
    <div id="meet"></div>
  </body>
</html>

Configuration Options

Parameter Type Description
room String Room ID to join
roomPassword String/Number Room password (0 for none)
name String Participant display name
avatar Mixed Avatar image URL or 0 to disable
audio Number Enable (1) or disable (0) audio
video Number Enable (1) or disable (0) video
screen Number Enable (1) or disable (0) screen sharing
chat Number Enable (1) or disable (0) chat.
hide Number Hide self view (1 to enable, 0 to disable)
notify Number Enable (1) or disable (0) notifications
duration String Session duration (e.g., "01:30:00" for 1.5 hours)
token String User token (optional, required if host.protected or host.user_auth is enabled in config.js)
width String Iframe width (e.g., "100vw")
height String Iframe height (e.g., "100vh")
parentNode DOM Element Parent HTML element for the iframe

Installation Steps

  1. Replace YOUR-DOMAIN-NAME with your MiroTalk SFU domain.
  2. Adjust the options object as needed.
  3. Add a <div id="meet"></div> where the iframe should appear.

Important Notes

  • Ensure your domain allows iframe embedding (CORS and X-Frame-Options settings).
  • Use the defer attribute when including the script.
  • Requires a valid MiroTalk SFU domain setup.

Widgets Integration

widget

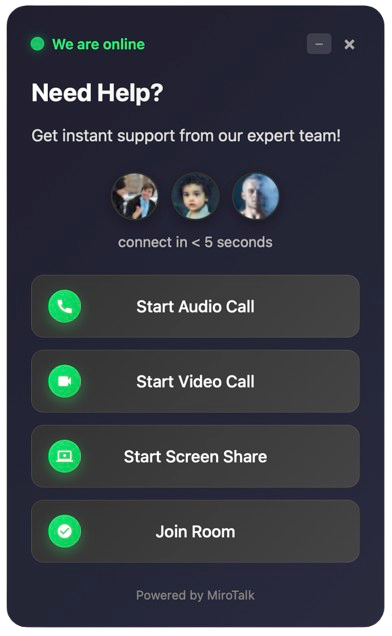

To quickly add a support widget to your site, include the script in your <head> and place the widget <div> at the end of your <body>. Your support widget will be ready instantly!

HTML
<!doctype html>
<html>
  <head>
    <script src="https://YOUR-DOMAIN-NAME/js/Widget.js"></script>
  </head>
  <body>
    <div
      id="support-widget"
      data-mirotalk-auto
      data-domain="YOUR-DOMAIN-NAME"
      data-room="support-room"
      data-theme="dark"
      data-widget-type="support"
      data-widget-state="normal"
      data-position="bottom-right"
      data-check-online="false"
      data-expert-images="https://i.pravatar.cc/40?img=1,https://i.pravatar.cc/40?img=2,https://i.pravatar.cc/40?img=3"
      data-buttons="audio,video,screen,chat,join"
      data-heading="Need Help?"
      data-subheading="Get instant support from our expert team!"
      data-connect-text="connect in &lt; 5 seconds"
      data-online-text="We are online"
      data-offline-text="We are offline"
      data-powered-by="Powered by MiroTalk"
    ></div>
  </body>
</html>
Attribute Type Description
id String The HTML element ID for the widget container (should be support-widget).
data-mirotalk-auto Boolean Automatically initializes the widget when present.
data-domain String Your MiroTalk SFU domain name.
data-room String The room ID for the support session.
data-theme String Widget theme, either dark or light.
data-widget-type String Type of widget, e.g., support.
data-widget-state String Initial widget state: normal, minimized, or closed.
data-position String Widget position on the page: bottom-right, bottom-left, top-right, or top-left.
data-check-online Boolean If true, checks if support is online before showing the widget.
data-expert-images String Comma-separated URLs of expert images to display as available assistants.
data-buttons String Comma-separated list of enabled buttons (e.g., audio,video,screen,chat,join).
data-heading String Main heading text displayed in the widget.
data-subheading String Subheading text for additional context.
data-connect-text String Text shown for connection status (supports HTML entities).
data-online-text String Text displayed when support is online.
data-offline-text String Text displayed when support is offline.
data-powered-by String Footer text, usually for branding or credits.

Advanced Widget Configuration (JavaScript)

HTML
<!doctype html>
<html>
  <head>
    <script src="https://YOUR-DOMAIN-NAME/js/Widget.js"></script>
  </head>
  <body>
    <script>
      window.addEventListener('DOMContentLoaded', function () {
        if (typeof MiroTalkWidget !== 'undefined') {
          const domain = 'YOUR-DOMAIN-NAME';
          const roomId = 'support-room';
          const userName = 'guest-' + Math.floor(Math.random() * 10000);

          new MiroTalkWidget(domain, roomId, userName, {
            theme: 'dark',
            widgetState: 'normal',
            widgetType: 'support',
            supportWidget: {
              position: 'bottom-right',
              expertImages: [
                'https://i.pravatar.cc/40?img=1',
                'https://i.pravatar.cc/40?img=2',
                'https://i.pravatar.cc/40?img=3',
              ],
              buttons: {
                audio: true,
                video: true,
                screen: true,
                chat: true,
                join: true,
              },
              checkOnlineStatus: false,
              isOnline: true,
              customMessages: {
                heading: 'Need Help?',
                subheading: 'Get instant support from our expert team!',
                connectText: 'connect in < 5 seconds',
                onlineText: 'We are online',
                offlineText: 'We are offline',
                poweredBy: 'Powered by MiroTalk SFU',
              },
            },
          });
        } else {
          console.error('MiroTalkWidget is not defined. Please check Widget.js loading.');
        }
      });
    </script>
  </body>
</html>

JavaScript Widget Options

Option Type Description
theme String Widget theme, either dark or light.
widgetState String Initial widget state: normal, minimized, or closed.
widgetType String Type of widget, e.g., support.
supportWidget Object Configuration object for support widget (see below).

supportWidget Object Properties

Property Type Description
position String Widget position: bottom-right, bottom-left, top-right, or top-left.
expertImages Array Array of expert avatar image URLs.
checkOnlineStatus Boolean If true, checks if support is online before showing the widget.
buttons Object Object to enable or disable widget buttons.
isOnline Boolean Sets the online status manually.
customMessages Object Customizable widget messages (see below).

customMessages Object Properties

Property Type Description
heading String Main heading text.
subheading String Subheading text.
connectText String Connection status text (supports HTML entities).
onlineText String Text when support is online.
offlineText String Text when support is offline.
poweredBy String Footer/branding text.

Find more examples in the widget folder.
